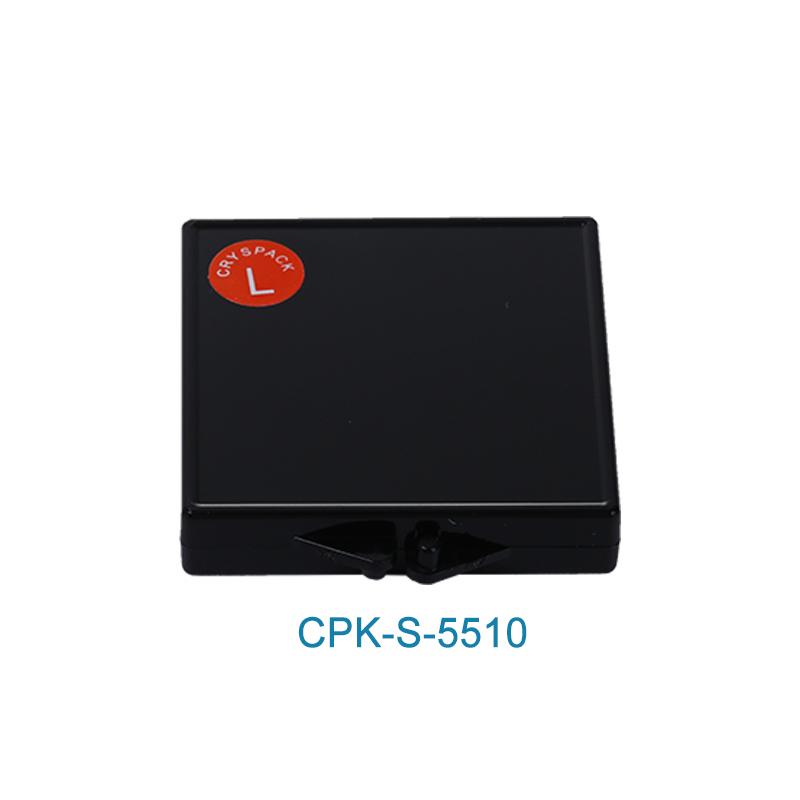

55x55x10mmPlastic Self Absorption Resins Box Chip/Optoelectronic/Semiconductor/Optical Packing Gel Sticky Carrying Box CPK-S-5510

DETAILS*

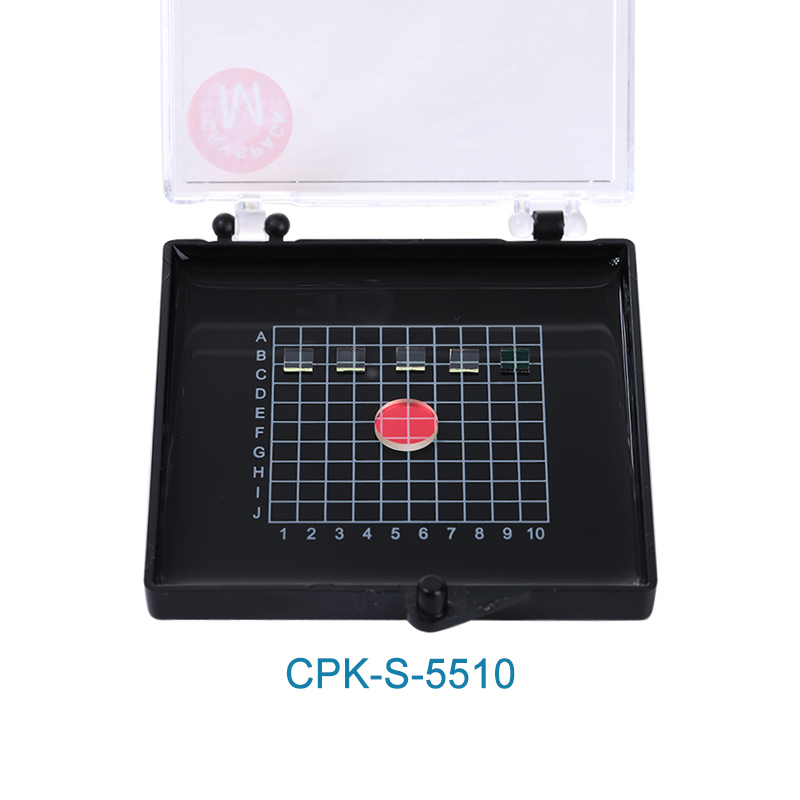

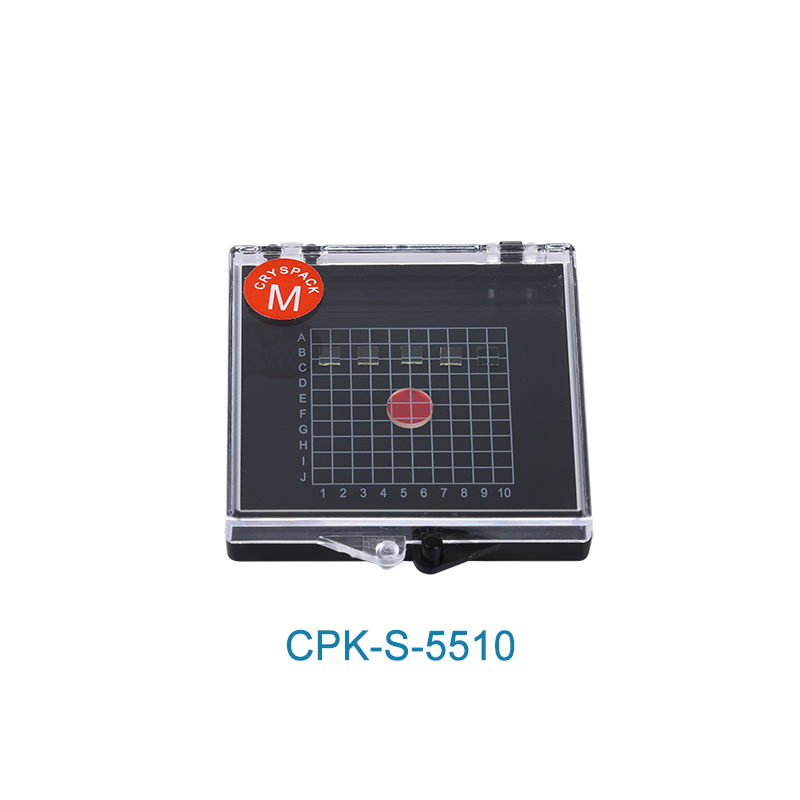

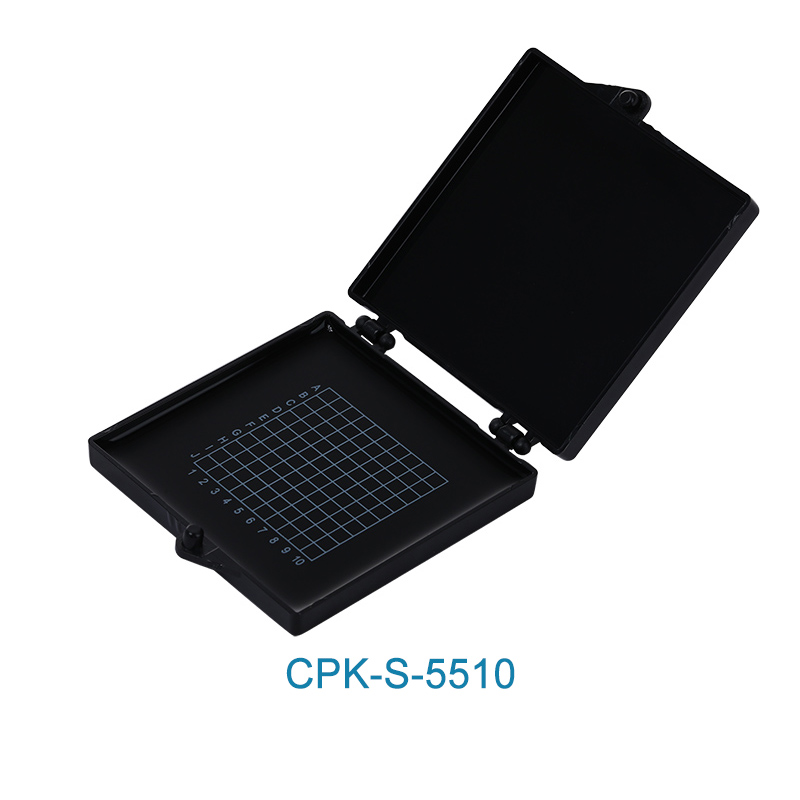

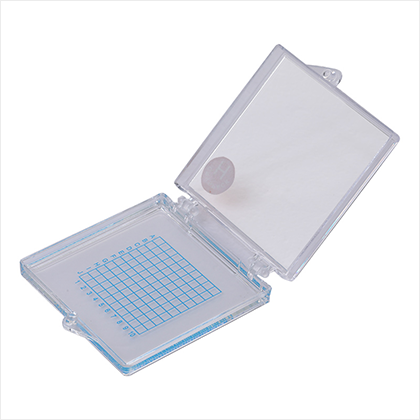

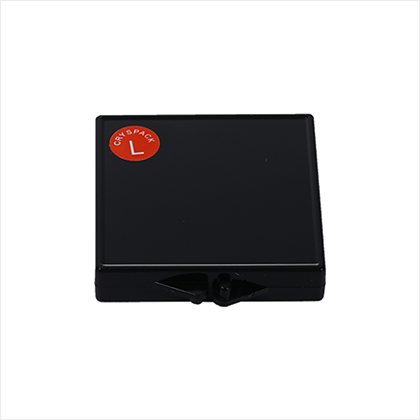

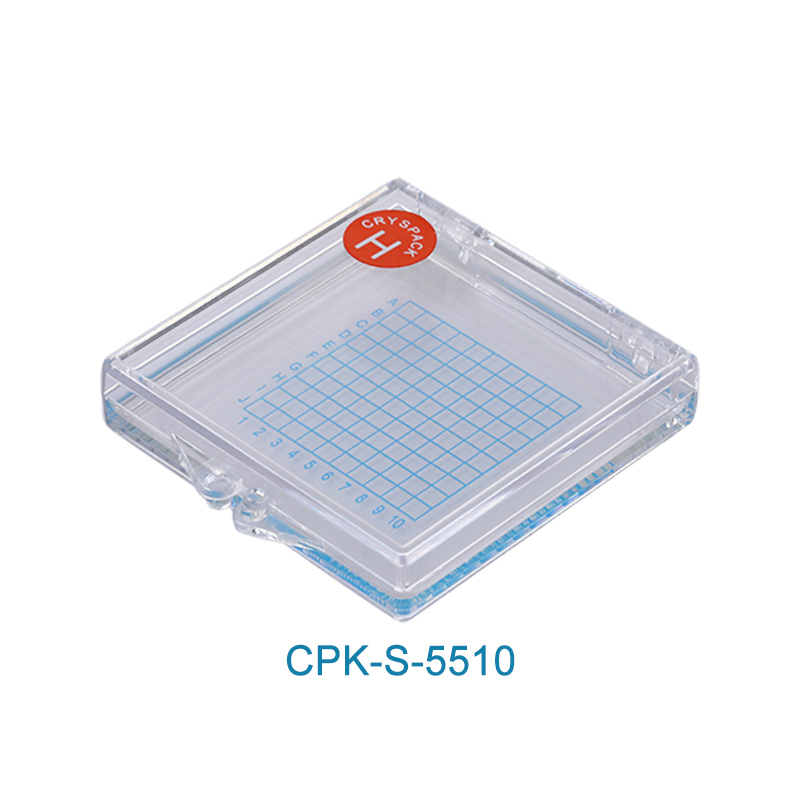

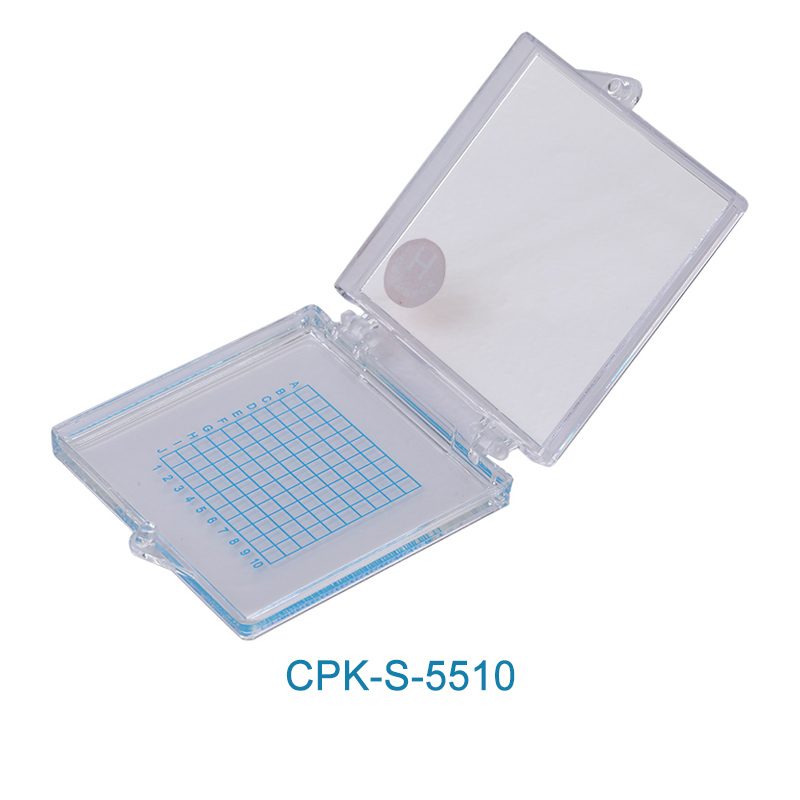

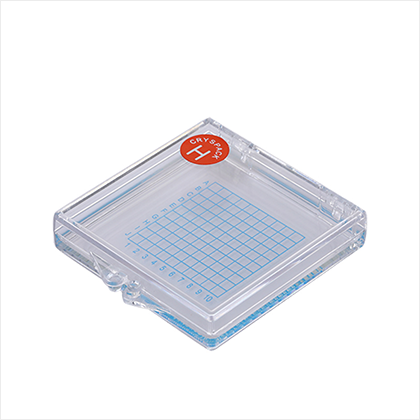

Plastic Self Absorption Resins Box Chip Features

1. Best Footprint: For small high-value components, it provides the optimal footprint size: 55×5 10mm.

2. Clear design: The clear cover allows for visible inspection before opening to determine which supplies you may be running low on.

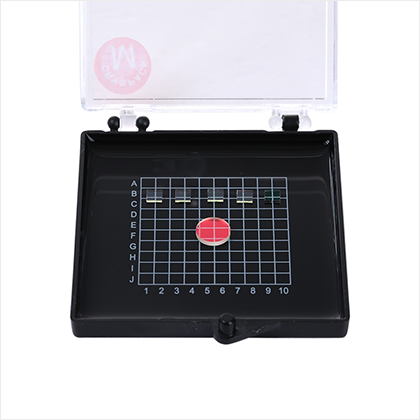

3. Gel Base: The gel base tightly holds items and protects it during movement or transportation.
4. Static-Free Environment: Comes with anti-static properties which helps to maintain a natural-static environment to prevent the components from getting static-electricity damage.
5. Customization: You can choose the level of gel stickiness and size of your box that best suits you.

Plastic Self Absorption Resins Box Chip Advantages

1. Semiconductor Industry: Protect fragile chips and wafers in transit.
2. Optoelectronic Parts: Preventing the lenses, lasers, and optical bases of the diodes.
3. R&D: Safely transport experimental parts from one location to another.
4. Electronics Manufacturing: Prevents damage to sensitive electronic parts.

5. Aerospace and Defense: Protect sensitive electronic technology, optical components that are used for aerospace applications.

Plastic Self Absorption Resins Box Chip Advantages

1. Greatest Durability: Impact and vibrations are absorbed by that supportive gel-coated bottom, which means your items have a much better chance of surviving the trip without being damaged.
2. Space-Efficient & Eco-friendly: It uses a slim, modern design to free up your workspace and increase productivity.

3. Static-safe environment: Our Gel Sticky Carrier Copper prevents your belongings from getting damaged by electrostatic.

4. Selection: You can order your Gel Sticky Carrier Box customized in the shape and size you prefer to fit your needs.
